CCD visual Laser Marking Machine

The visual laser marking machine combines laser technology with a visual positioning CCD system to become an advanced marking equipment, greatly improving the intelligence level and marking consistency of the production line. It is one of the key equipment in the Industry 4.0 era, automatically identifying product positions, correcting deviations, and ensuring accurate marking positions. Supporting linkage with assembly lines, robotic arms, and other equipment, the visual system automatically recognizes products and triggers labeling, achieving unmanned operation.

Features

(1) Visual automatic capture of product position, no need for fixture positioning

(2). Products of any quantity and angle can be accurately marked to the designated position;

(3). Can be paired with assembly lines or other automatic loading and unloading mechanisms to save manpower and achieve unmanned automatic marking

(4). The visual positioning range can be set according to the size of the product (5) Software/hardware installation is convenient, fast, and easy to operate;

Applications scenario

1. Marking start signal

2. Marking completion signal

3. Choose multiple templates for marking

4. Select positioning content based on PLCD area

5. Automatic generation of QR code

6. Connect to MES system and read data

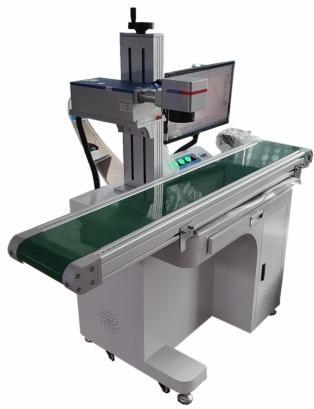

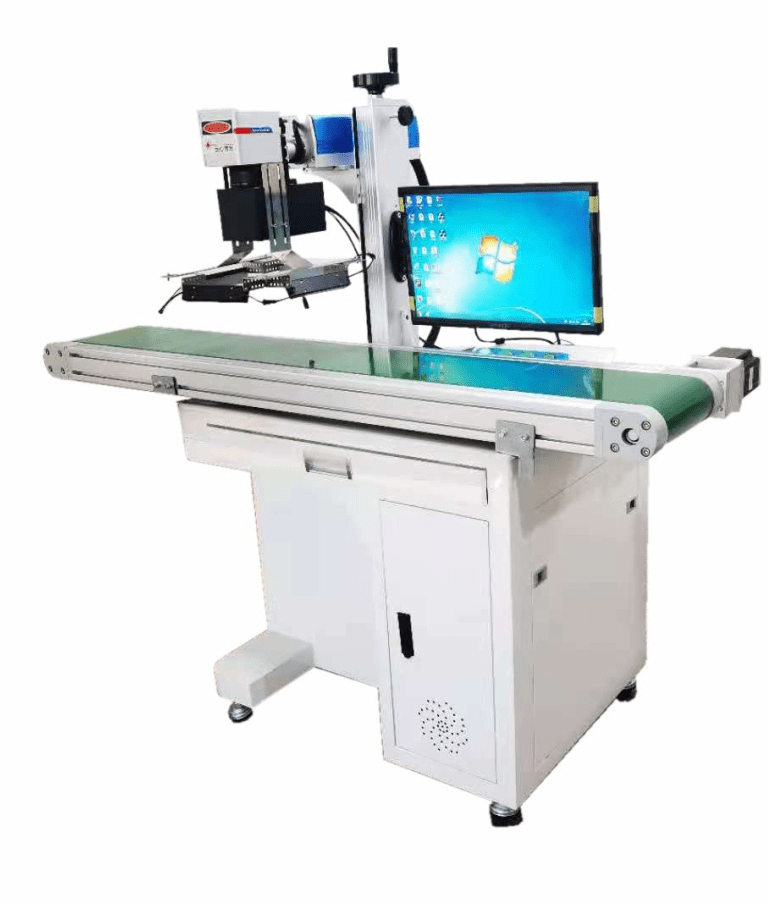

With Belt line

1. Belt line equidistant movement marking

2. Belt line photoelectric detection marking

3. Choose multiple templates for marking

4. Equipped with anti weight function

5. Automatic generation of QR code

6. Connect to MES system and read data

Fiber optic vision machines are suitable for all metal and plastic products, such as electronic appliances, hardware tools, jewelry, automotive parts, instruments and meters. They are particularly suitable for small products that are difficult to handle manually

UV vision machines are suitable for almost all plastic (95%) products, such as nylon products, ABS

Samples
